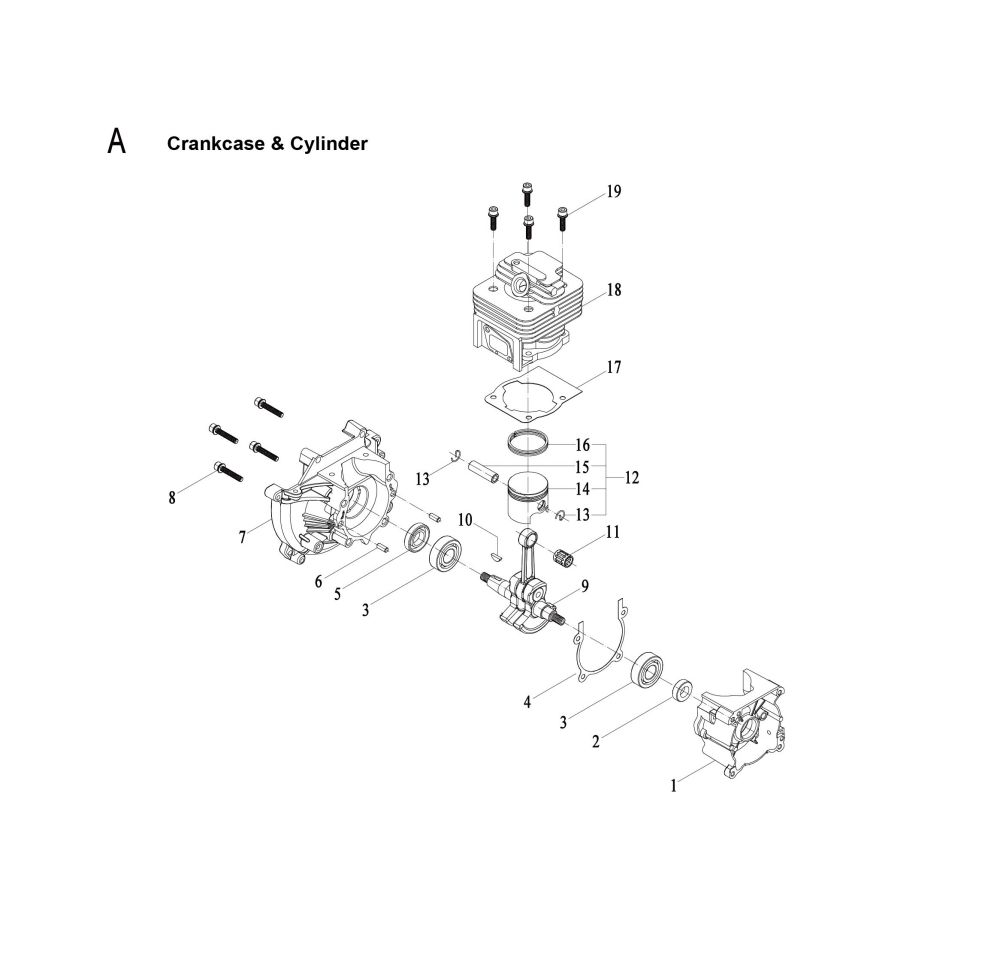

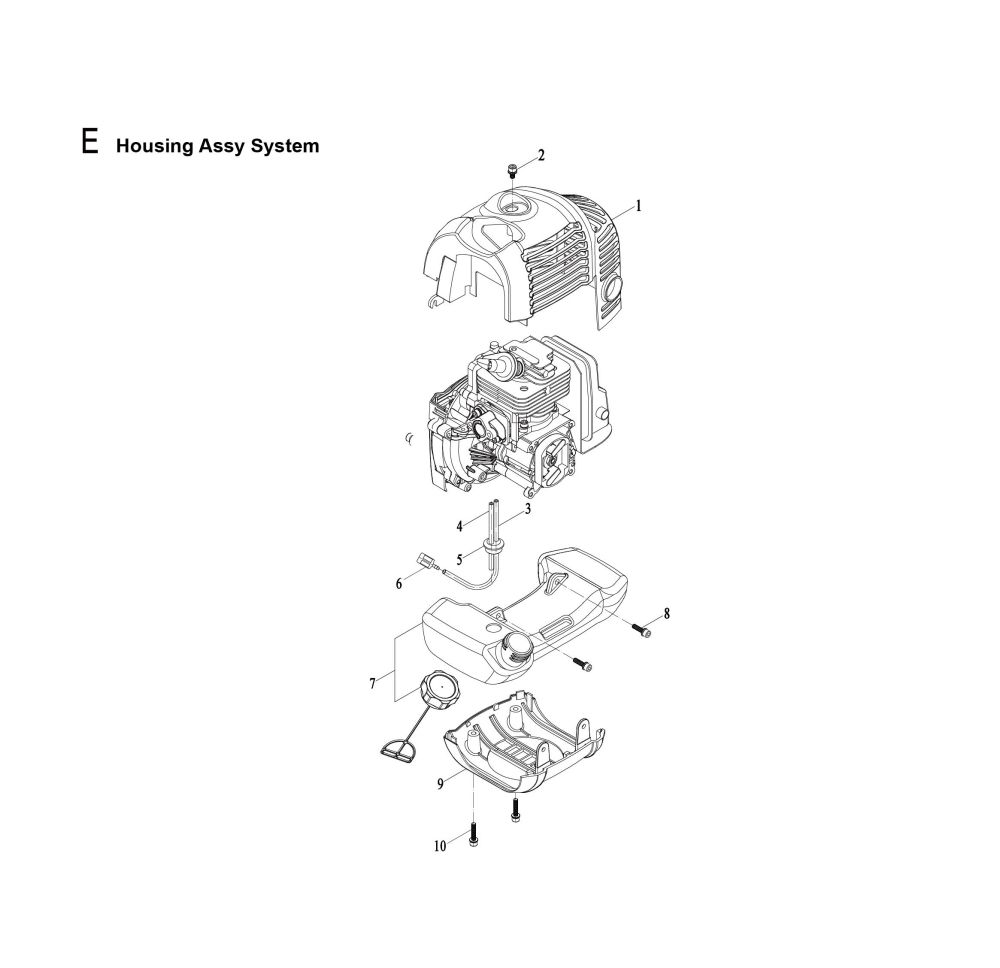

| A Crankcase & Cylinder | E Housing Assy System | ||
| Code | Part Name | Code | Part Name |
| A1 | Rear Crankcase | E1 | Cylinder Cover |
| A2 | Oil Seal(S) | E2 | Screw, Crankcase |
| A3 | Ball Bearing | E3 | Inlet Fuel Pipe |

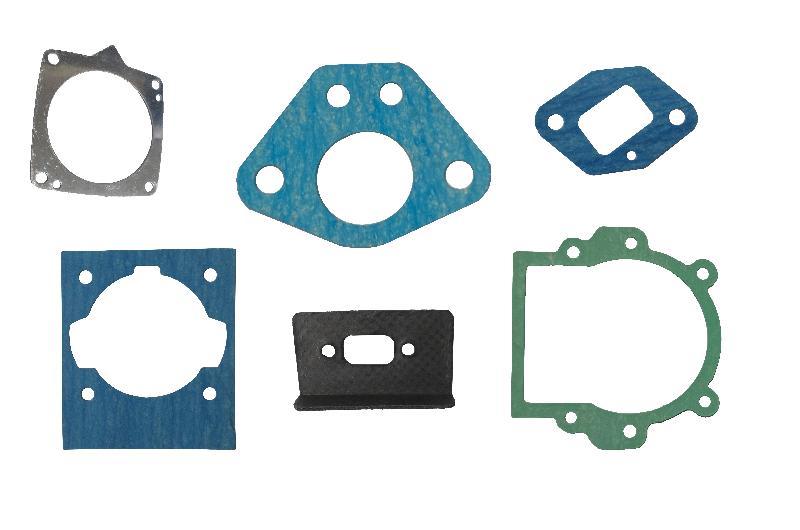

| A4 | Gasket, Crankcase | E4 | Return Fuel Pipe |
| A5 | Oil Seal(S) | E5 | Grommet, Fuel Pipe |
| A6 | Pin | E6 | Fuel Filter |

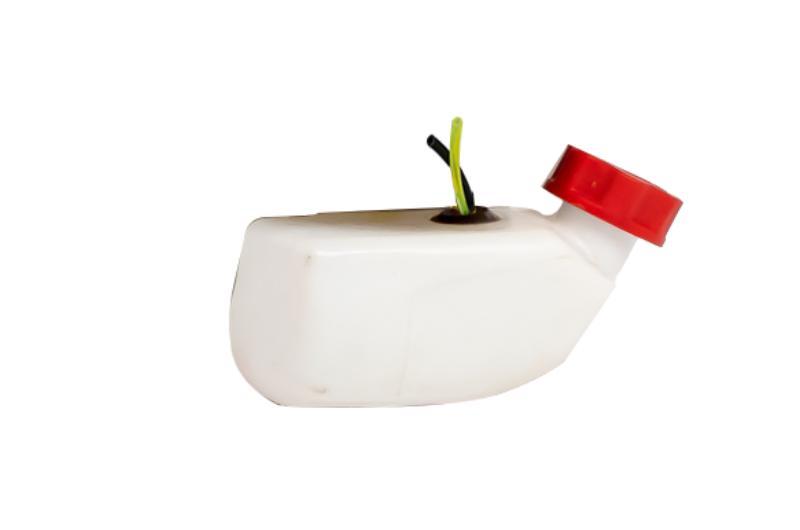

| A7 | Front Crankcase | E7 | Fuel Tank Assy |
| A8 | Screw, Crankcase | E8 | Screw, Crankcase |

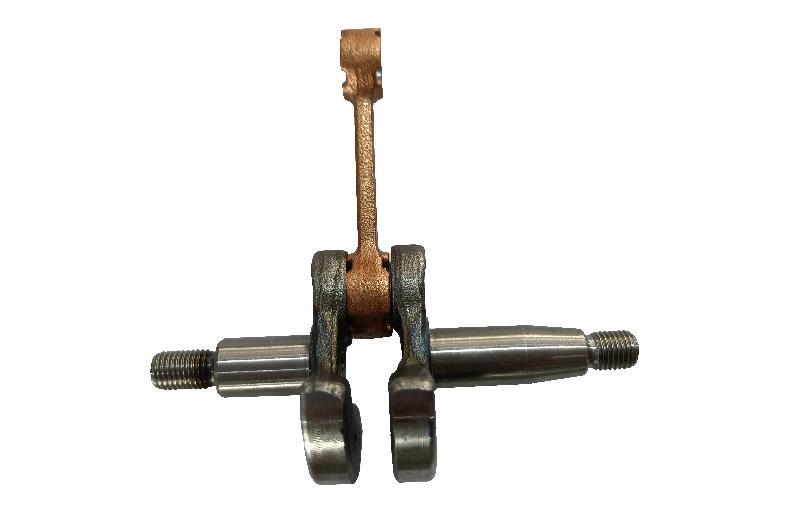

| A9 | Crankshaft | E9 | Guard, Fuel Tank |
| A10 | Woodruff Key | E10 | Screw, Crankcase |

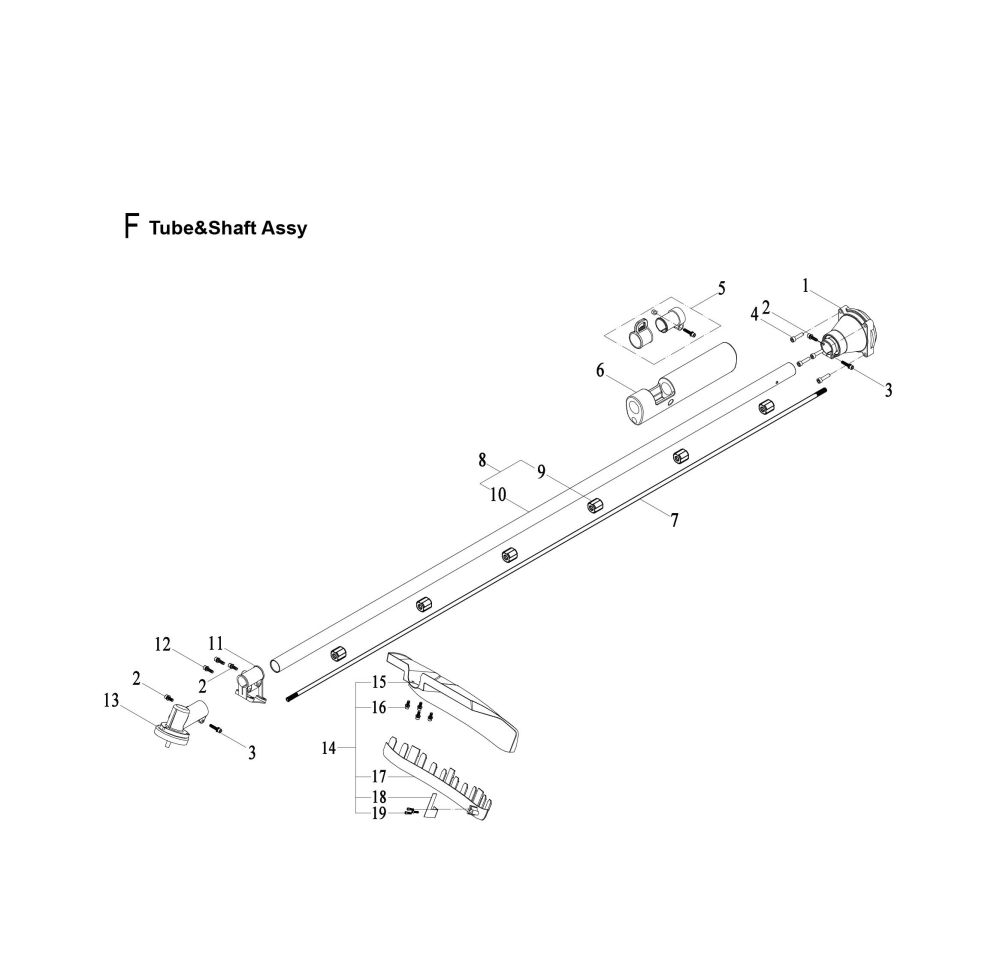

| A11 | Needle Bearing, Piston | F Tube&Shaft Assy | |

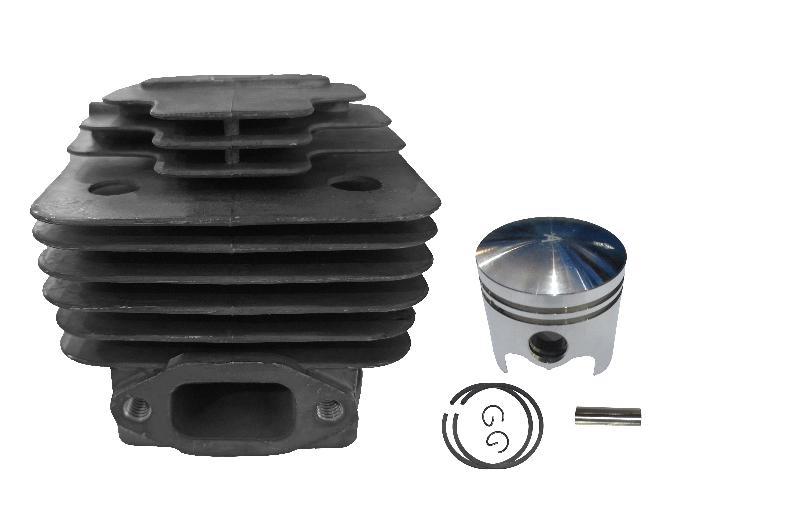

| A12 | Piston Assy | Code | Part Name |

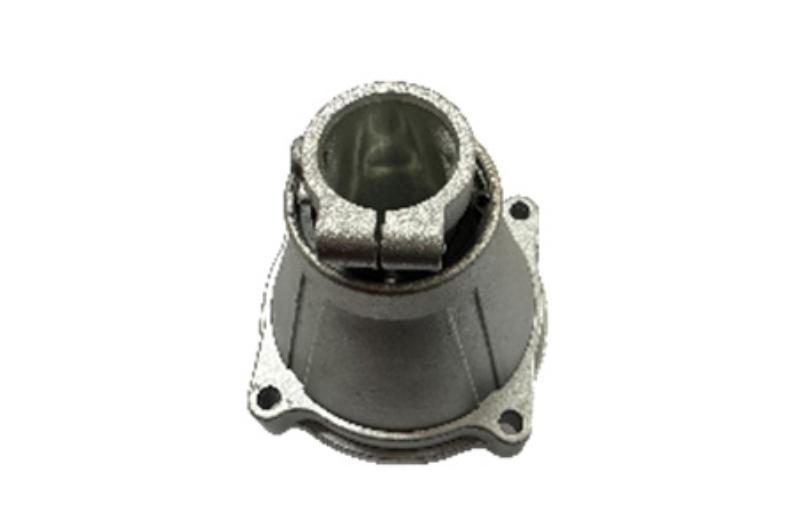

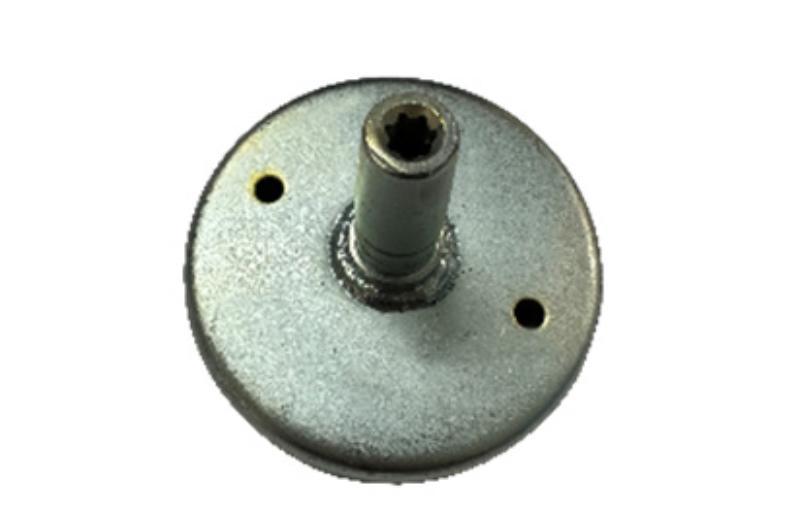

| A13 | Circlip | F1 | Clutch Housing Assy |
| A14 | Piston | F2 | Screw, Crankcase |
| A15 | Piston Pin | F3 | Screw, Crankcase |
| A16 | Piston Rings | F4 | Screw, Crankcase |
| A17 | Gasket, Cylinder | F5 | Hook Clamp |
| A18 | Cylinder | F6 | Buffer Sleeve(Luxury) |
| A19 | Screw, Crankcase | F7 | Drive Shaft |

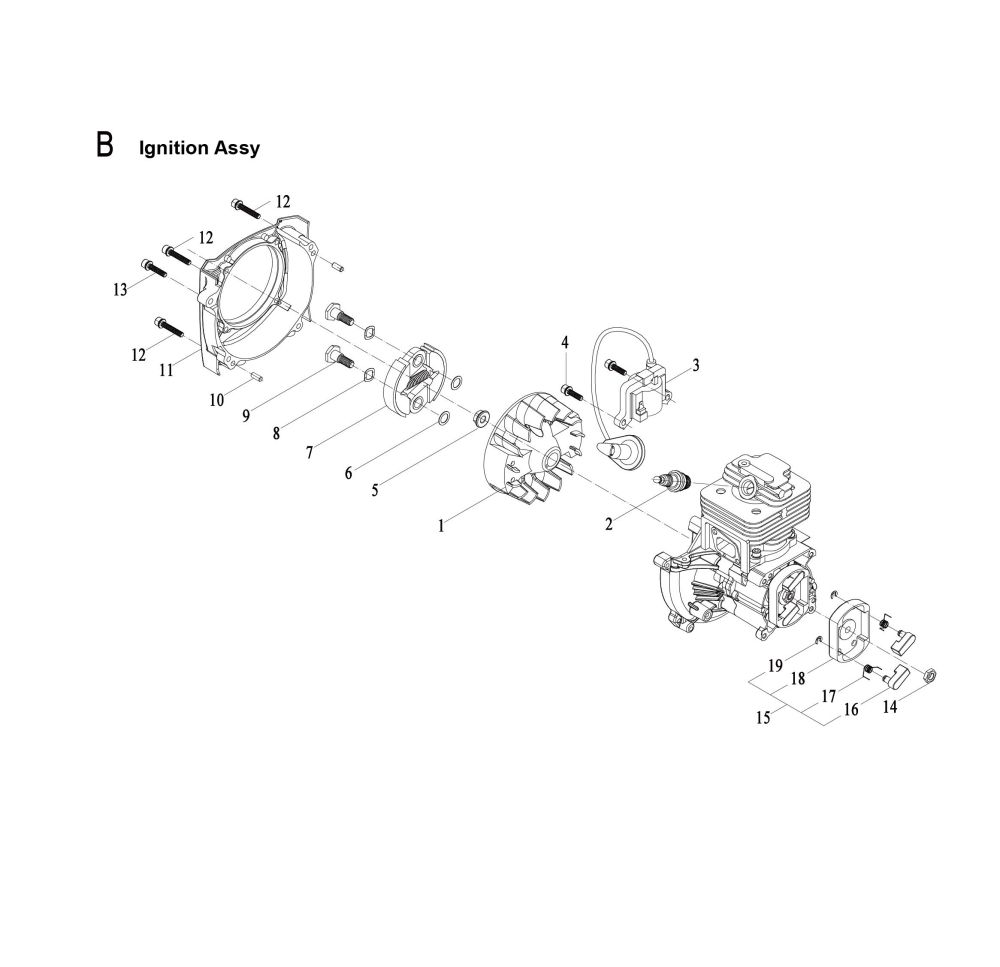

| B Ignition Assy | F8 | Tube Set | |
| Code | Part Name | F9 | Oil Bearings |

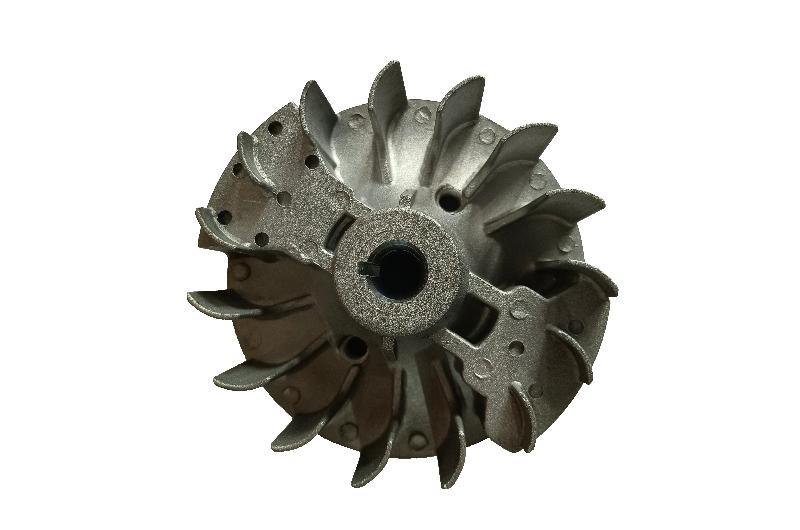

| B1 | Flywheel | F10 | Tube (matte) |

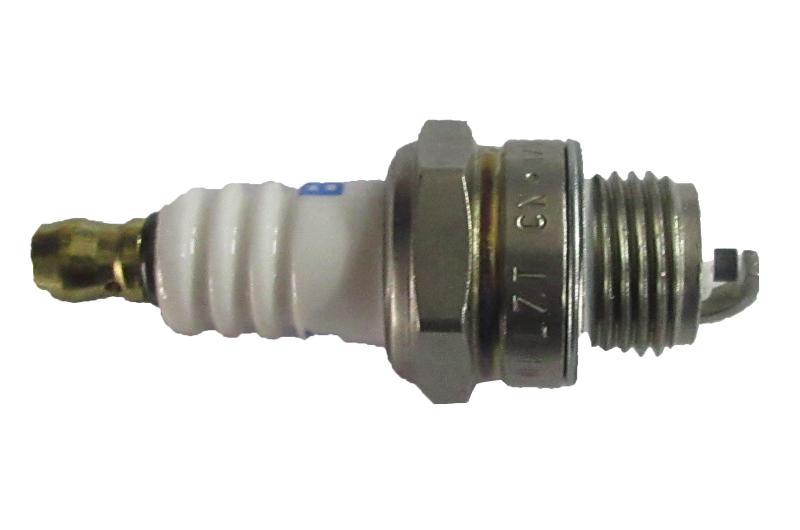

| B2 | Spark Plug | F11 | Deflector Seat |

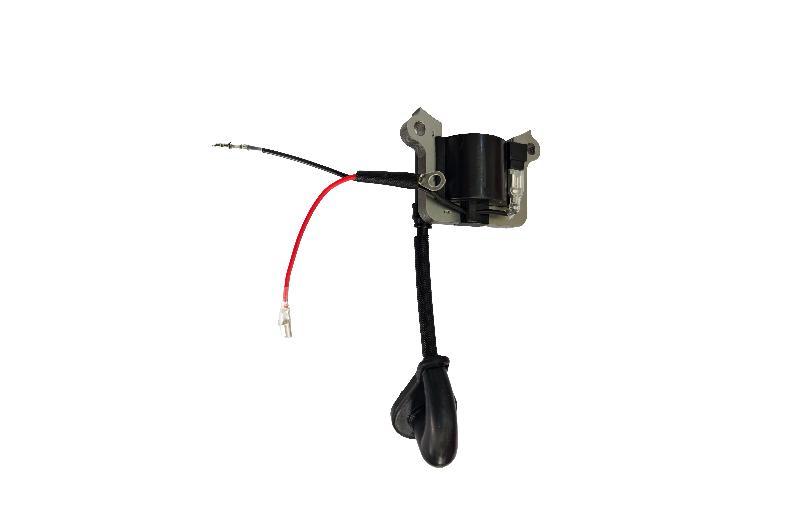

| B3 | Ignition Coil(Mitsubishi) | F12 | Screw, Crankcase |

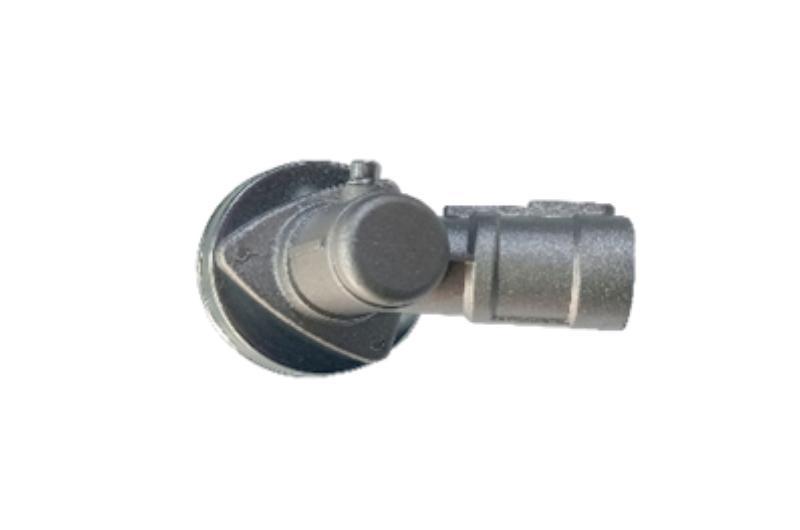

| B4 | Screw, Crankcase | F13 | Gearbox Assy |
| B5 | Nut, Flywheel | F14 | Deflector Assy |
| B6 | Washer, Clutch | F15 | Deflector |

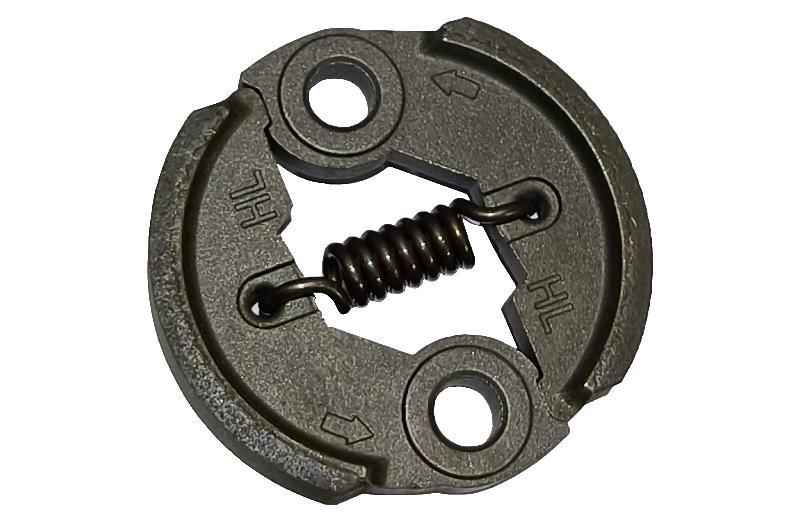

| B7 | Clutch | F16 | Screw, Crankcase |
| B8 | Wave Washer | F17 | Deflector Skirt |

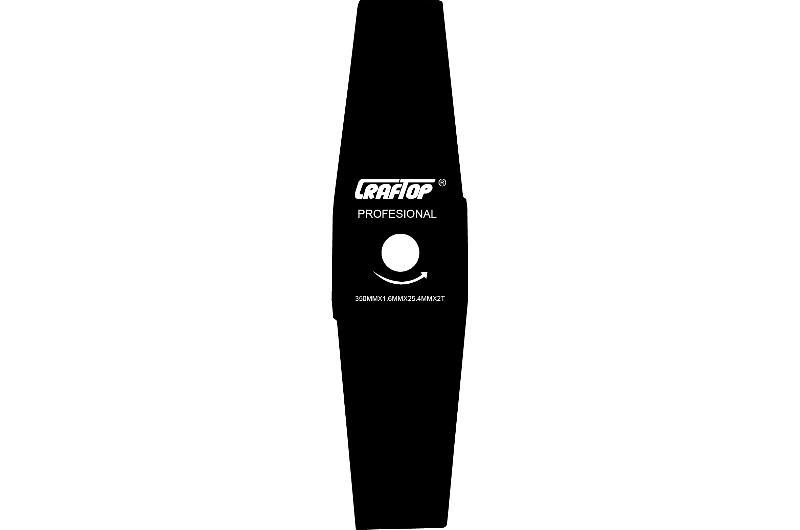

| B9 | Bolt, Clutch | F18 | Blade |
| B10 | Pin | F19 | Screw, Crankcase |

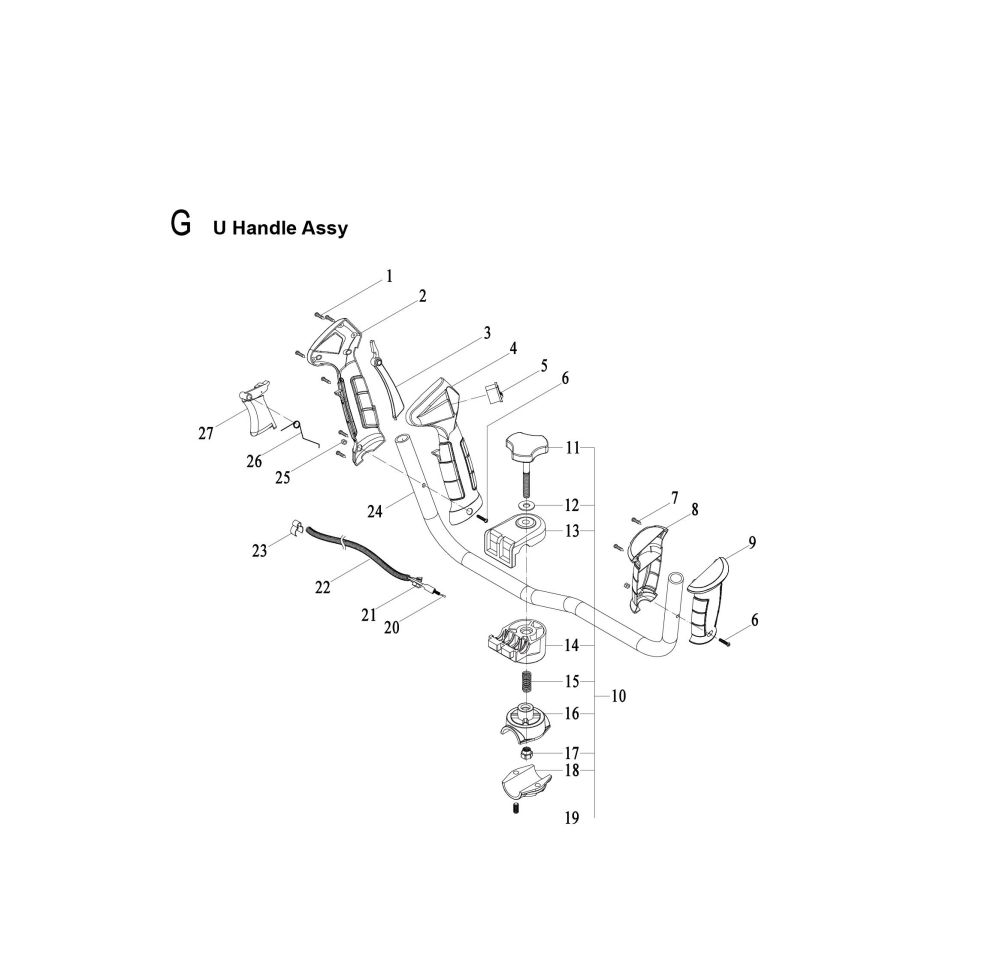

| B11 | Fan Cover | G U-Handle Assy | |
| B12 | Screw, Crankcase | Code | Part Name |
| B13 | Screw, Crankcase | G1 | Screw, Control Handle |

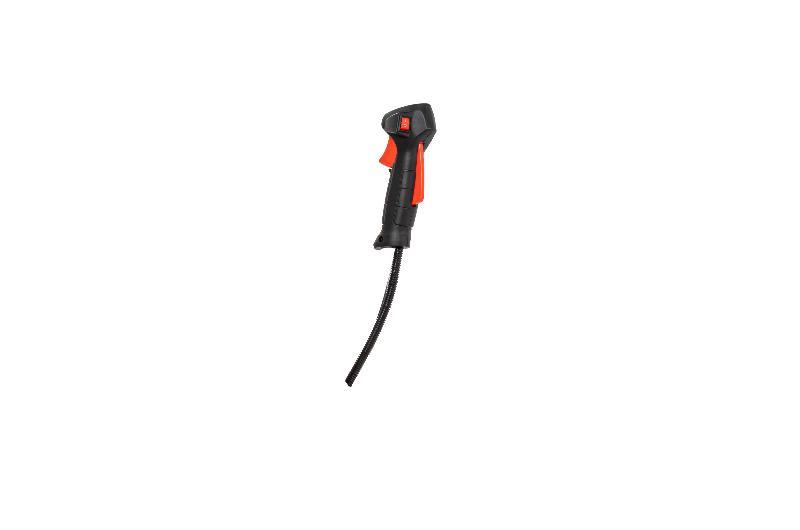

| B14 | Nut, Flywheel | G2 | Control Handle, R |
| B15 | Starter Cup Assy | G3 | Interlock trigger |
| B16 | Pawl | G4 | Control Handle, L |
| B17 | Torsion Spring | G5 | ON/OFF Switch |
| B18 | Cup Body | G6 | Screw, Control Handle |
| B19 | E-clip | G7 | Screw, Control Handle |

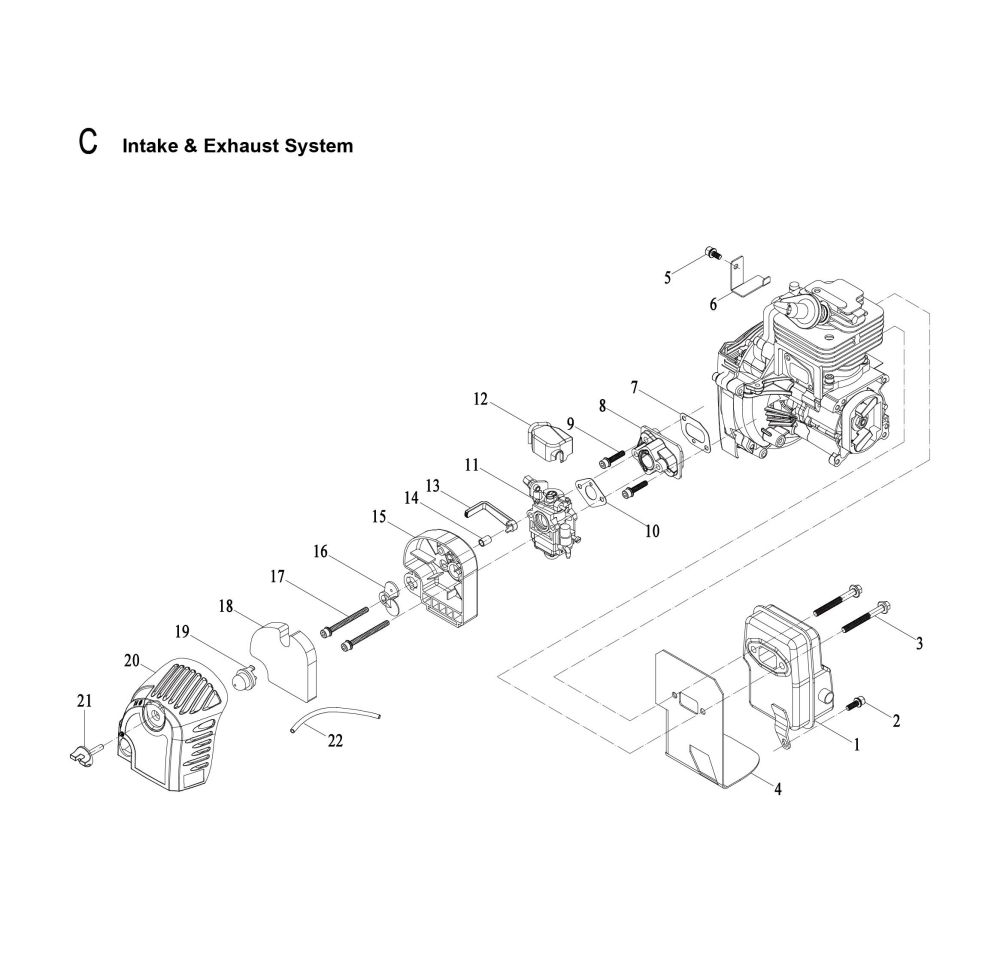

| C Intake & Exhaust System | G8 | Left Handle, R | |
| Code | Part Name | G9 | Left Handle, L |

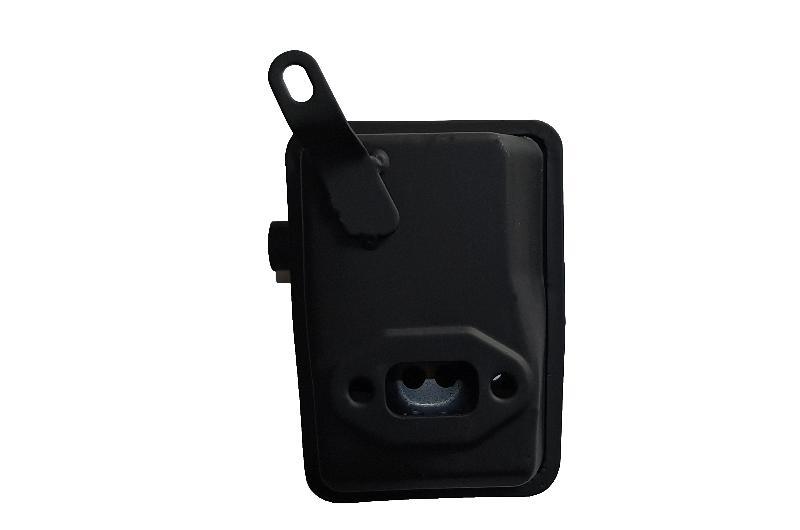

| C1 | Muffler | G10 | U-Handle Seat(Luxury) |
| C2 | Screw, Crankcase | G11 | Knob |
| C3 | Screw, Crankcase | G12 | Washer, Knob |
| C4 | Gasket, Muffler | G13 | Upper Clamp |
| C5 | Screw, Crankcase | G14 | Bottom Clamp |
| C6 | Support, Gasket | G15 | Clamp Spring |
| C7 | Gasket, Monifold | G16 | Clamp Support |
| C8 | Monifold | G17 | Nut, Flywheel |
| C9 | Screw, Crankcase | G18 | Bottom Holder |
| C10 | Gasket, Carburetor | G19 | Screw, Crankcase |

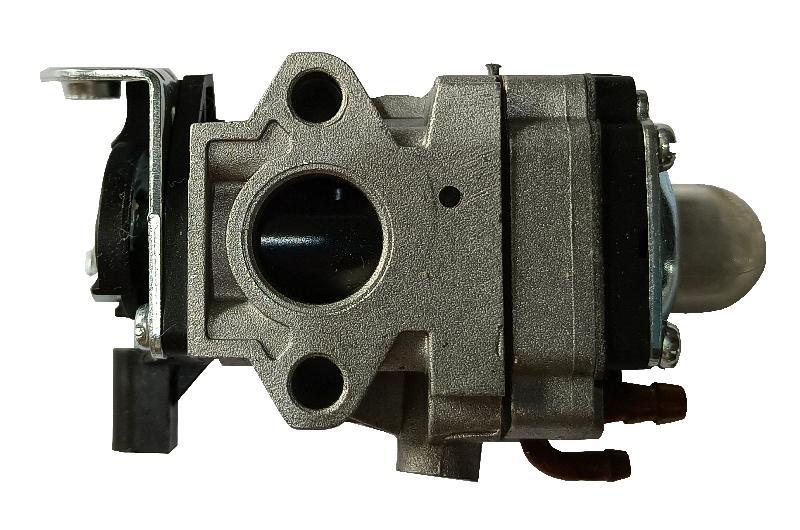

| C11 | Carburetor | G20 | Throttle Cable |
| C12 | carburetor Cover | G21 | STOP Wire |
| C13 | Choke Shutter | G22 | Cable Wave Hose |
| C14 | Sleeve | G23 | C-Clip |

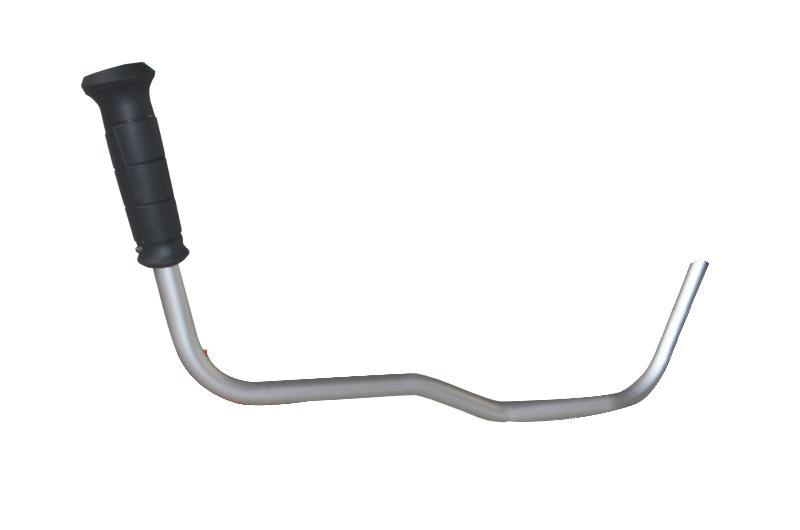

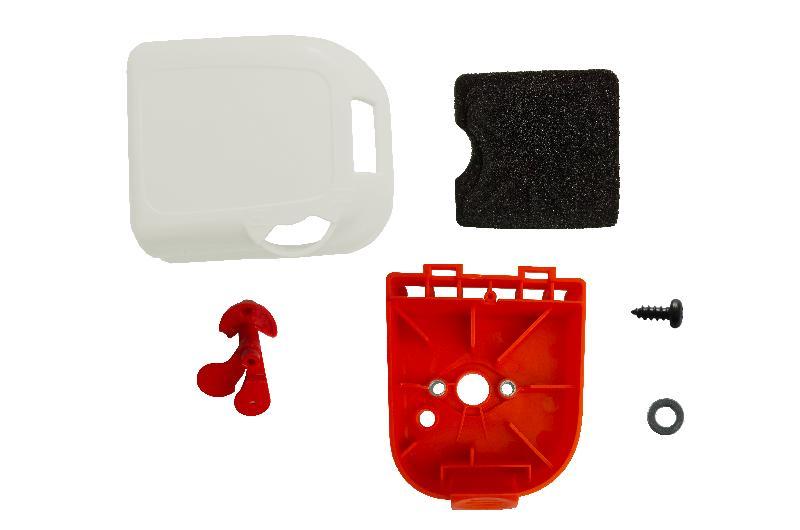

| C15 | Filter Housing | G24 | Tube, U-Handle |
| C16 | Baffle Plate, Choke | G25 | Self-tightening Locknut |
| C17 | Screw, Crankcase | G26 | Torsion Spring, Throttle Trigger |
| C18 | Air filter | G27 | Throttle Trigger |

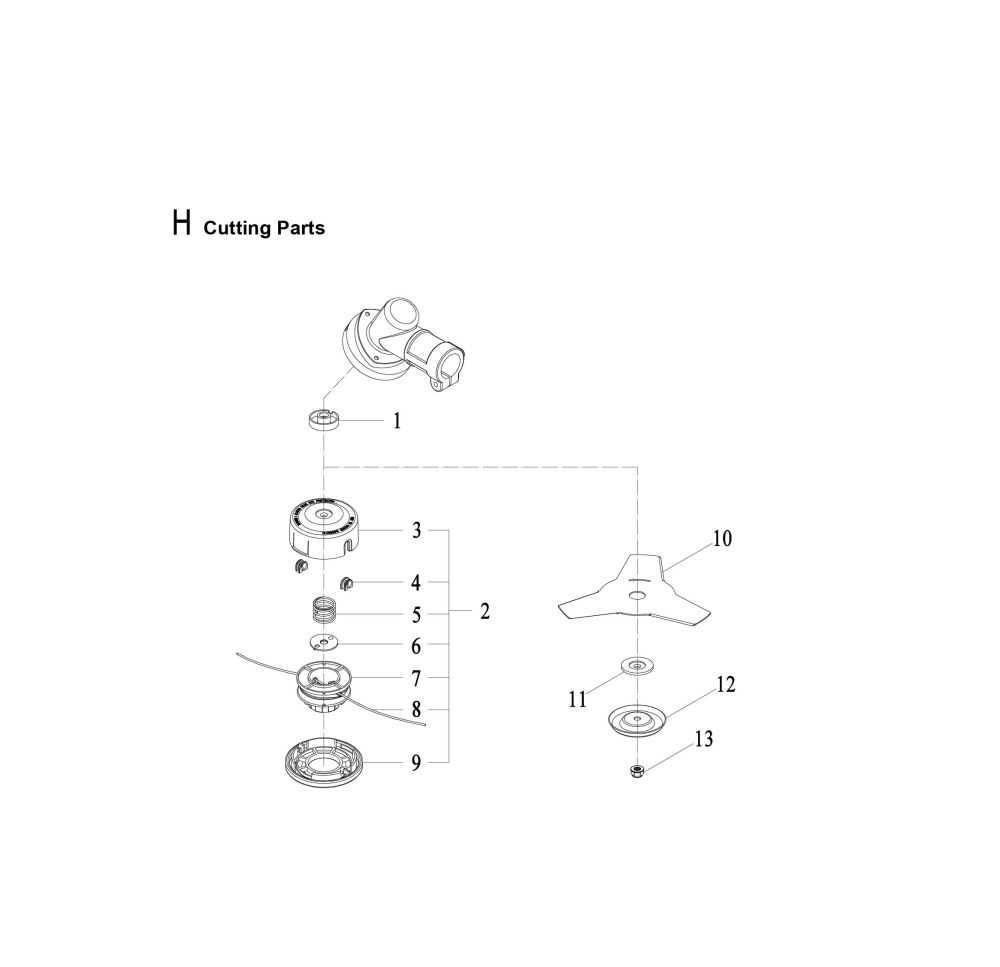

| C19 | #N/A | H Cutting Parts | |
| C20 | Filter Cover | Code | Part Name |
| C21 | #N/A | H1 | Trust Plate |

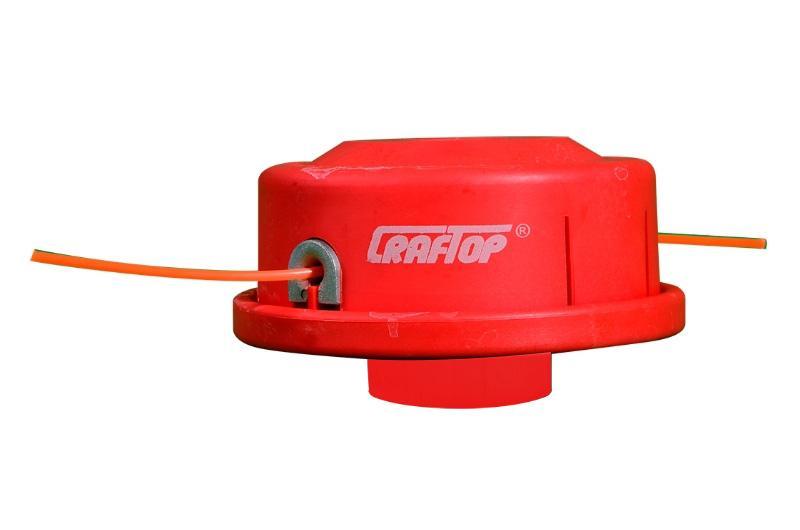

| C22 | Fuel Ex. Hose | H2 | Trimmer Head Assy |

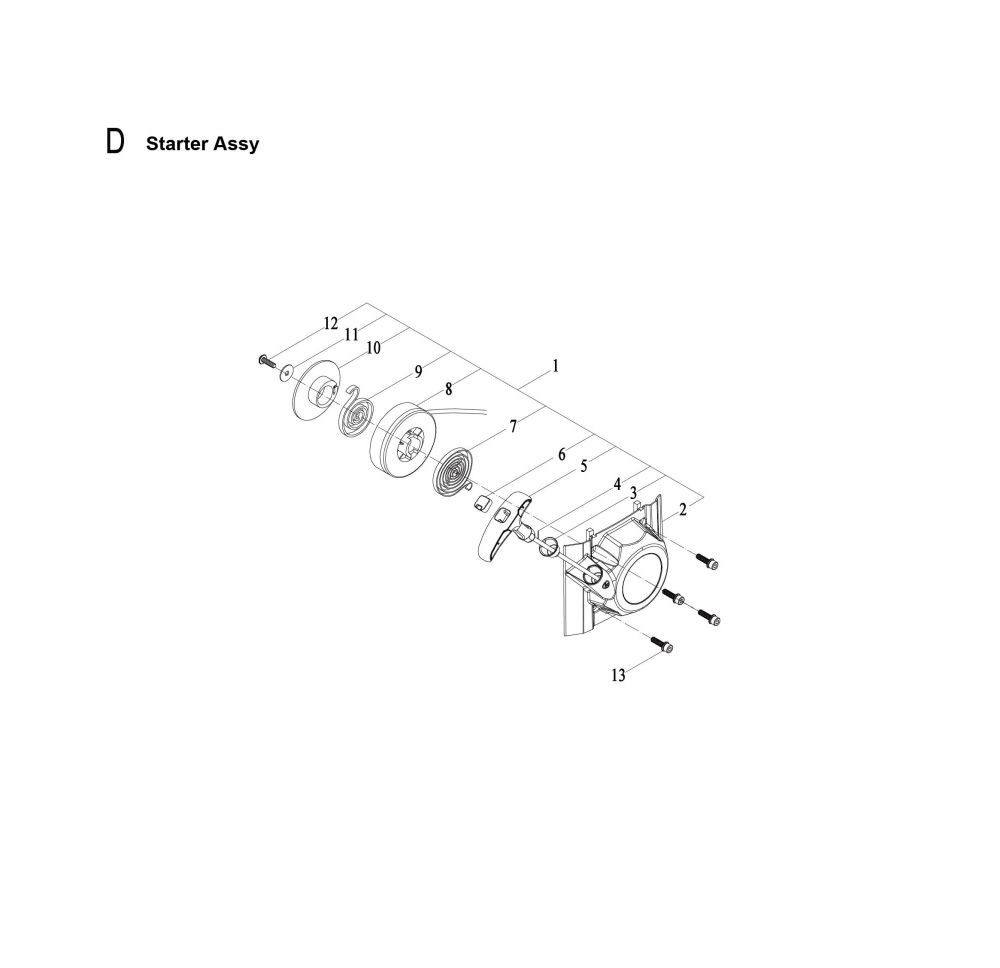

| D Starter Assy | H3 | Housing, Trimmer Head | |
| Code | Part Name | H4 | Cutting Line Guide |

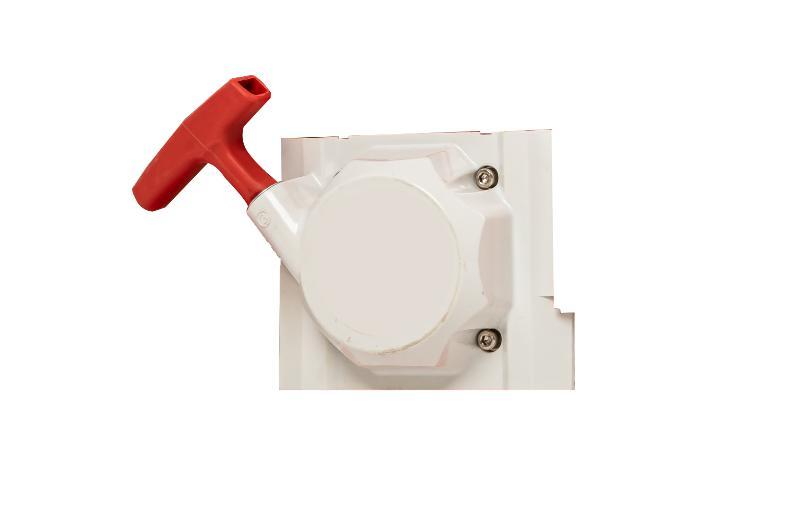

| D1 | Starter Assy | H5 | Spring, Trimmer Head |
| D2 | Starter Cover | H6 | Upper Over |
| D3 | Bushing | H7 | Cutting Line Reel |
| D4 | Rope | H8 | Nylon Cutting Line |
| D5 | Grip, Starter | H9 | Bottom Cover |

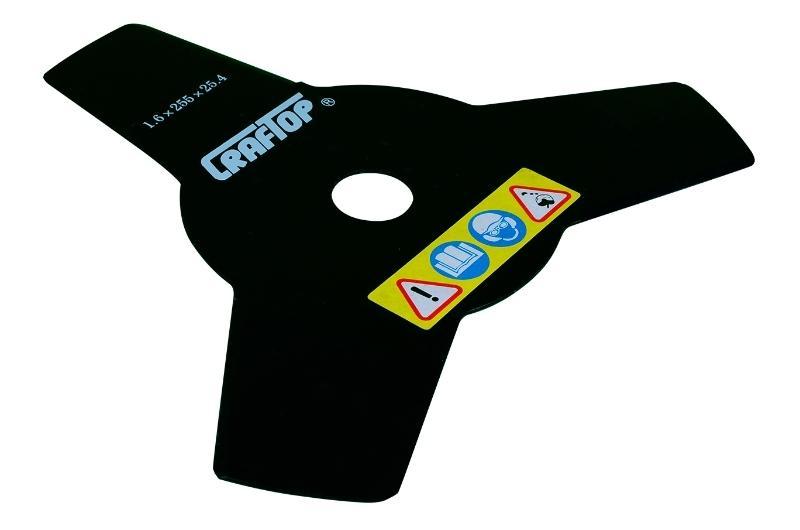

| D6 | Grip Cover, Starter | H10 | 3-T Blade |
| D7 | Return Spring | H11 | Trust Washer |
| D8 | Pulley, Starter | H12 | Guard, Gearbox |
| D9 | Buffer Spring | H13 | Nut, Flywheel |
| D10 | Starter Reel | ||
| D11 | Washer | ||
| D12 | Screw, Crankcase | ||
| D13 | Screw, Crankcase | ||
